DIPLE RGS Review: A Slide Microscope Built Around Your Phone

Shortlist the DIPLE RGS if you want a complete, phone-first bright-field slide kit that uses your existing phone camera and screen. Skip it if you want a self-contained microscope screen, Wi-Fi camera stream, controlled XY searching, or a measurement instrument. You do not need an existing microscope: the box, light, Standard Stage, Red and Grey lens tiles, and basic slide accessories form the documented RGS setup.[1][3][5]

As an Amazon Associate I earn from qualifying purchases.

Check the DIPLE RGS on Amazon

What the RGS actually is

DIPLE is a small box-supported optical train rather than a tiny digital camera. Put the illuminated slide over the stage opening, position a lens tile above it, and lay your phone so its camera looks through the tile. The phone supplies the camera and screen; the DIPLE supplies the transmitted illumination and optics. The current maker datasheet identifies the RGS package with Red 40x and Grey 90x lenses, a Standard Stage, adjustable feet, slides, coverslips, pipette, tweezers, screwdriver, and an LED light source.[3] The exact Amazon listing describes the same product family with Red 35x and Grey 75x objectives.[5] That is a buyer-visible specification conflict, not something to silently explain away as a revision: confirm the lens ratings supplied with your order before relying on a particular specification.

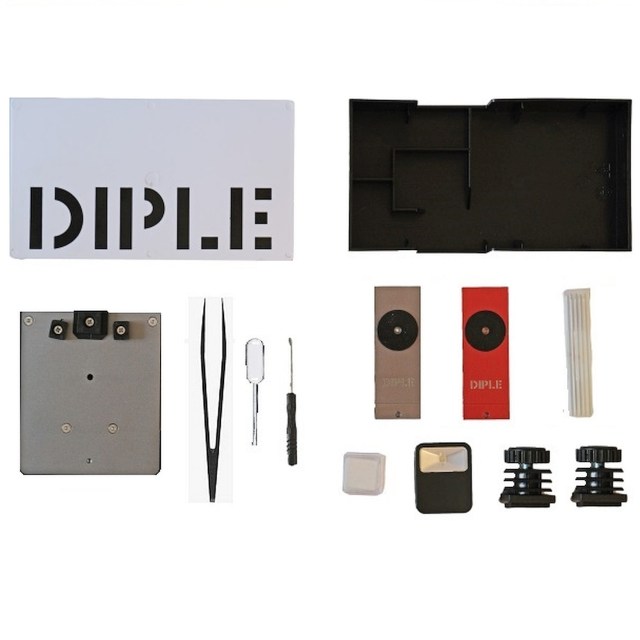

DIPLE RGS kit arranged around its box, stage, lens tiles, light and slide accessories — RGS Red/Grey kit and Standard-stage arrangement. Supplier image: SmartMicroOptics. Illustrated contents do not establish the lens revision supplied with an order.[1]

Your phone is the camera

The English instructions say to open your favorite camera APP, align the phone camera with the objective lens and light, then rest the phone on the box and the lens tile’s black ring.[6] That makes your own phone alignment essential. It is not a proprietary-app, Wi-Fi, or software-receiver workflow. A case may be usable, but the documentation does not establish compatibility with every phone, camera mode, or case, so expect to adjust position and support. The supplied feet can help with a large phone or tablet, but they do not turn alignment into a universal guarantee.[3][6]

Focusing and slide control

Focusing is physical: the screw in the lens tile raises or lowers the objective, while the stage height and phone position establish the illuminated image.[3][6] The Standard Stage is deliberately simple. You move the slide manually to scan the specimen under the lens: choose this arrangement when you are comfortable finding each area of interest by hand.[2][5] The optional Fine Stage is the different mechanism: its screws move a slide along two perpendicular directions. Do not assume that feature is in this RGS box.

There is also a practical caveat in the maker’s troubleshooting material: manufacturing clearance between a tile thread and screw can allow unwanted backlash.[4] Use the maker’s guidance if the tile feels loose rather than assuming backlash-free positioning. The sensible workflow is to center the light, secure the tile blocks, make small focus changes, and move the Standard-stage slide by hand.

What is included—and what is not promised

The maker documents Red and Grey tiles, Standard Stage, prepared and plain slides, coverslips, a pipette, tweezers, adjustable feet, screwdriver, and LED illumination.[3] Slide quantities differ between the datasheet and English leaflet; confirm what comes with your order. It also mentions the LED’s two CR2032 batteries; the current datasheet independently says the power source is two included CR2032 cells.[3][6] The phone powers its own camera and screen; check the supplied light and cells before a lesson.

Do not transfer the family leaflet’s Black 150x lens, ruler, or Fine Stage into this Red/Grey Standard-stage purchase. Digital zoom can make the view larger and can assist camera exposure, but magnification or zoom alone does not establish resolved performance. For lessons, account for glass slides, coin cells and small parts. Keep the cells out of children’s reach and supervise handling: the instructions warn of a choking hazard and say it is not for children under three, so this is not an unsupervised small-child toy.[6]

Final verdict

Choose the DIPLE RGS when the attraction is the interaction: illuminate a slide, focus a raised lens tile, align the phone you already own, and manually explore the specimen on screen. It is a more complete starting point than buying a lens-only accessory, and it avoids requiring a separate microscope. Skip it when you need screw-driven XY searching in the box, an integrated camera, quantified optical validation, or guaranteed fit for a particular phone-and-case combination. Before ordering, treat the 35x/75x versus 40x/90x listings as a confirmation item, not a guarantee of additional resolved detail.[1][6]
